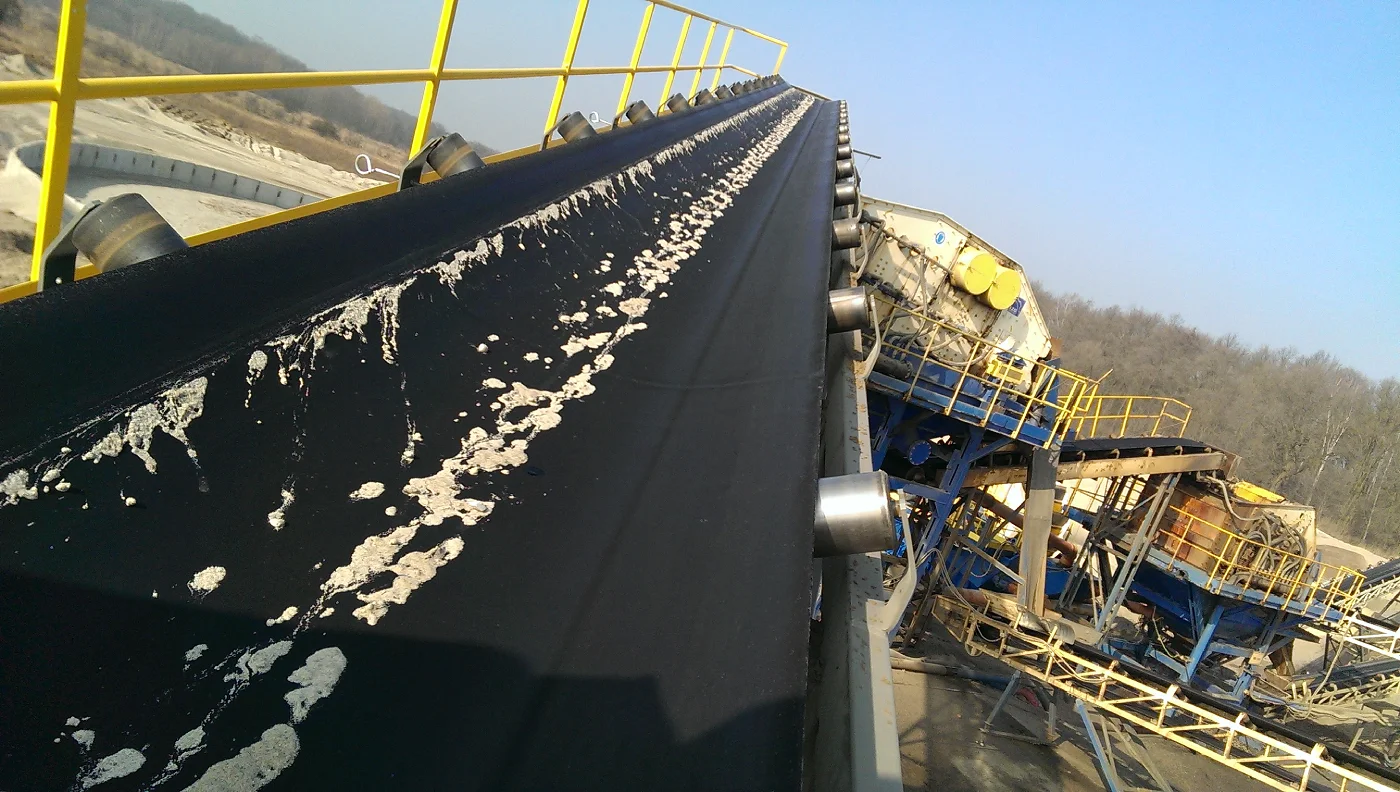

Large panoramic photo showing a long, black conveyor belt stretching diagonally across the center of the frame, viewed from above. The conveyor is slightly soiled with light, irregular sand stains. To the left of the belt, along its edge, there is a yellow metal safety barrier with a handrail, running upwards and to the right. To the right of the belt, metal support rollers are visible. In the background, to the right of the conveyor, there is a large, complex industrial machinery structure in yellow and blue, used for crushing materials. In the distance to the right of the conveyor, trees and a fragment of a forest are visible, while to the left of the horizon, an open mining area with visible sand and rubble heaps can be seen. The entire scene is illuminated by bright daylight, and the sky is clear and blue.

Rings for Conveyor Rollers – key components in material transport

Product Description

Rings for rollers are essential elements in belt conveyor systems. Used primarily in ring rollers, they are responsible for shock absorption, structure stabilization, and conveyor protection at loading points. By adapting to specific operating conditions, they increase the lifespan of the entire system.


Labyrinth seal is a key element used in conveyor rollers, which provides effective protection for bearings against dust, water, and other contaminants. In the mining industry, where equipment operates in harsh conditions, proper sealing of mechanisms is essential for their long and trouble-free operation.

Thanks to the use of a deflector, the seal effectively eliminates solid particles, which significantly reduces the risk of failure and extends the life of the bearings. Additionally, high temperature resistance makes labyrinth seals suitable for extreme mining conditions, where traditional sealing systems may fail.

Our labyrinth seals for conveyor rollers guarantee minimization of friction, effectively protecting the transport system and reducing operating costs. By choosing proven solutions, you invest in the reliability and durability of key conveyor components.


What do we offer?

Steel and rubber rings – custom-made, according to client's technical documentation. Perfect fit for roller pipe diameters. Straight and segmented rings – constructions with increased clamping force, designed for intensive use in harsh conditions. Spacer sleeves, separators, washers – additional elements ensuring proper operation and positioning of the rings.


Why choose us?

Precise manufacturing – we guarantee dimensional accuracy and repeatability even with large production volumes. High abrasion resistance – the use of proven materials allows for trouble-free operation even in extreme conditions. Compatibility with labyrinth and lip seals – for additional bearing protection and longer lifespan of rollers


Application of rings:

We produce rings for rollers with industries in mind where bulk material transport is continuous and intensive: Mining and extractive industry Cement and lime industry Recycling and waste processing Aggregate and building material processing plants High-intensity technological lines

Labyrinth seal with deflector

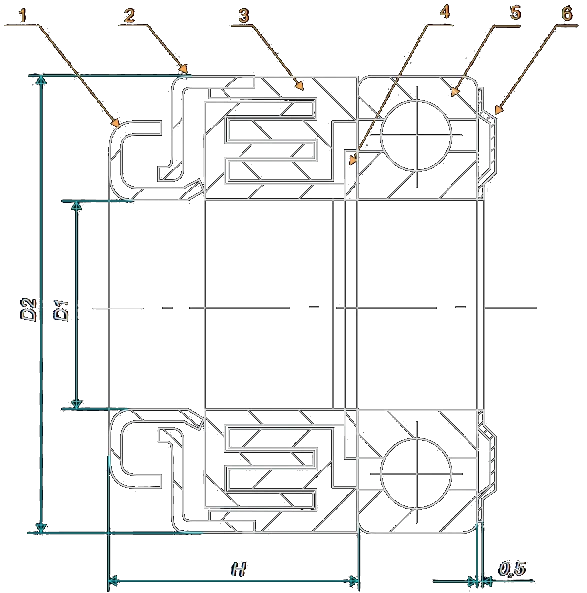

Labyrinth seal with deflector – technical drawing
Labyrinth seal with deflector
Type D1 (mm) D2 (mm) H (mm)
U6204 20 47 21.5
U6205 25 52 22.5
U6206 30 62 25
U6305 25 62 25
